AT-10AL

AT-10AL

10 inch in-vehicle rugged tablet powered by Linux system

The AT-10AL's features of wet touch, glove touch, 10F supercapacitor, etc. Greatly improve work efficiency and user experience in applications such as agriculture, mining and construction.

Product Tags

Feature

阳光

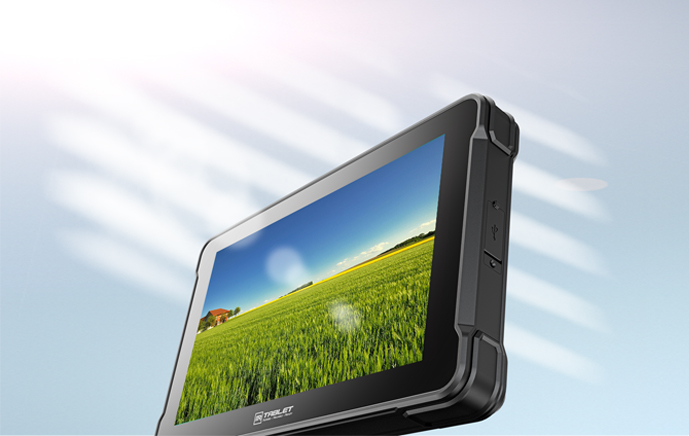

High Brightness Screen

With 1000 nits high brightness screen, readable under strong sunlight.

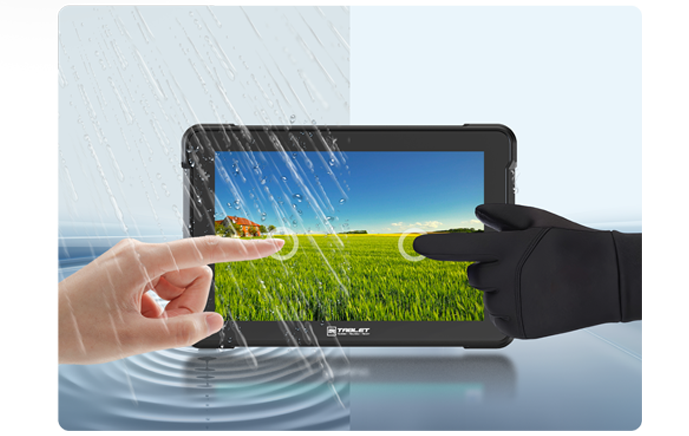

Wet Touch and Glove Touch

Support  wet touch and glove touch function, ensuring excellent responsiveness even when the operator's figures are wet or they are wearing gloves.

wet&glove touch
qt

Qt Platform

Qt platform provides a cross-platform C/C++ graphical user interface application development framework, which has strong scalability and is convenient for software development.

Real-time Communication (optional)

Built-in Wi-Fi/ Bluetooth /GNSS/4G functions. Easily track and manage the equipment status.

GPS
ISO-7637

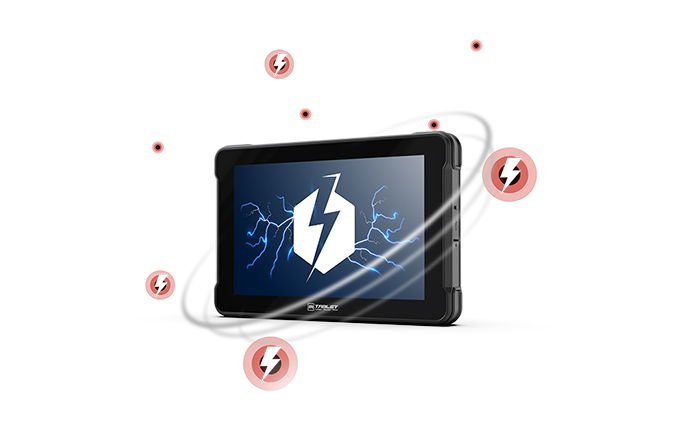

ISO 7637-II

Complied with ISO 7637-II standard transient voltage protection. Withstand up to 174V 300ms vehicle surge impact. Support DC8-36V wide voltage power supply.



Rich Interfaces

With RS232, RJ45, RS485, CAN, GPIO etc. extended interfaces for connecting peripheral devices.

接口

Specification

System
CPU NXP i.MX 8M Mini, ARM® Cortex®-A53 1.6GHz
GPU 1× shader, Vivante GC320, Vivante GCNanoUltra
Operating System Yocto
RAM 2 GB LPDDR3 (Default)/4GB (Optional)
Storage 16 GB eMMC (Default)/64GB (Optional)
Storage Expansion  Micro SD 128 GB
Functional Module
LCD 10.1 inch HD (1280×800), 1000 nits, Sunlight readable
Screen Multi touch capacitive touchscreen supporting glove and rain mode
Sound Build-in speaker 2W, 90dB
Internal Microphones
Interfaces  Type-C, Compliant with USB 2.0 (For data transfer; Support OTG)
USB 2.0 (Type-A)
3.5mm headphone jack
Sensors Acceleration sensors, Ambient light sensor, Gyroscope, Compass
Environment
Vibration Test MIL-STD-810G
Dust Resistance Test IP6x (IEC60529)
Water Resistance Test IPx7 (IEC60529)
Operating Temperature -20°C ~ 65°C (-4°F ~ 149°F)
Storage Temperature -30°C ~ 70°C (-22°F ~ 158°F)
Communication (Optional)
Bluetooth BLE5.0 (Optional)
WLAN IEEE 802.11 a/b/g/n/ac; 2.4GHz/5GHz (Optional)
Mobile Broadband LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Optional)
GNSS GPS/GLONASS (Optional)
Physical Characteristics
Power DC9-36V (ISO 7637-II compliant)
Battery 10F Supercapacitor
Physical Dimensions 273 × 183 × 49 mm
Weight 1.6kg
Extended interface
RS232 × 2
ACC  × 1
Power  × 1
Can ×1
GPIO (Positive Trigger Input) Input × 4, Output × 4
RJ45 (10/100)  × 1 (1000M)
RS485  × 1
Analog Input  × 1

Accessories

Torx

Torx Screwdriver & Screws

extension-cable

Extension Cable (optional)

power cable

Power Cable

anti-glare-film、

Anti-glare Film (optional)

GNSS-ANTANNE

GNSS Antenna (optional)

支架

Double U-Bolt Rail Mount RAM-101U-235 (optional)

LET-antenn

LTE Antenna (optional)

适配器

Power Adaptor (optional)
